DHIPD40-LR-DUO-D-G: AI Menselijke Detectie Technologie

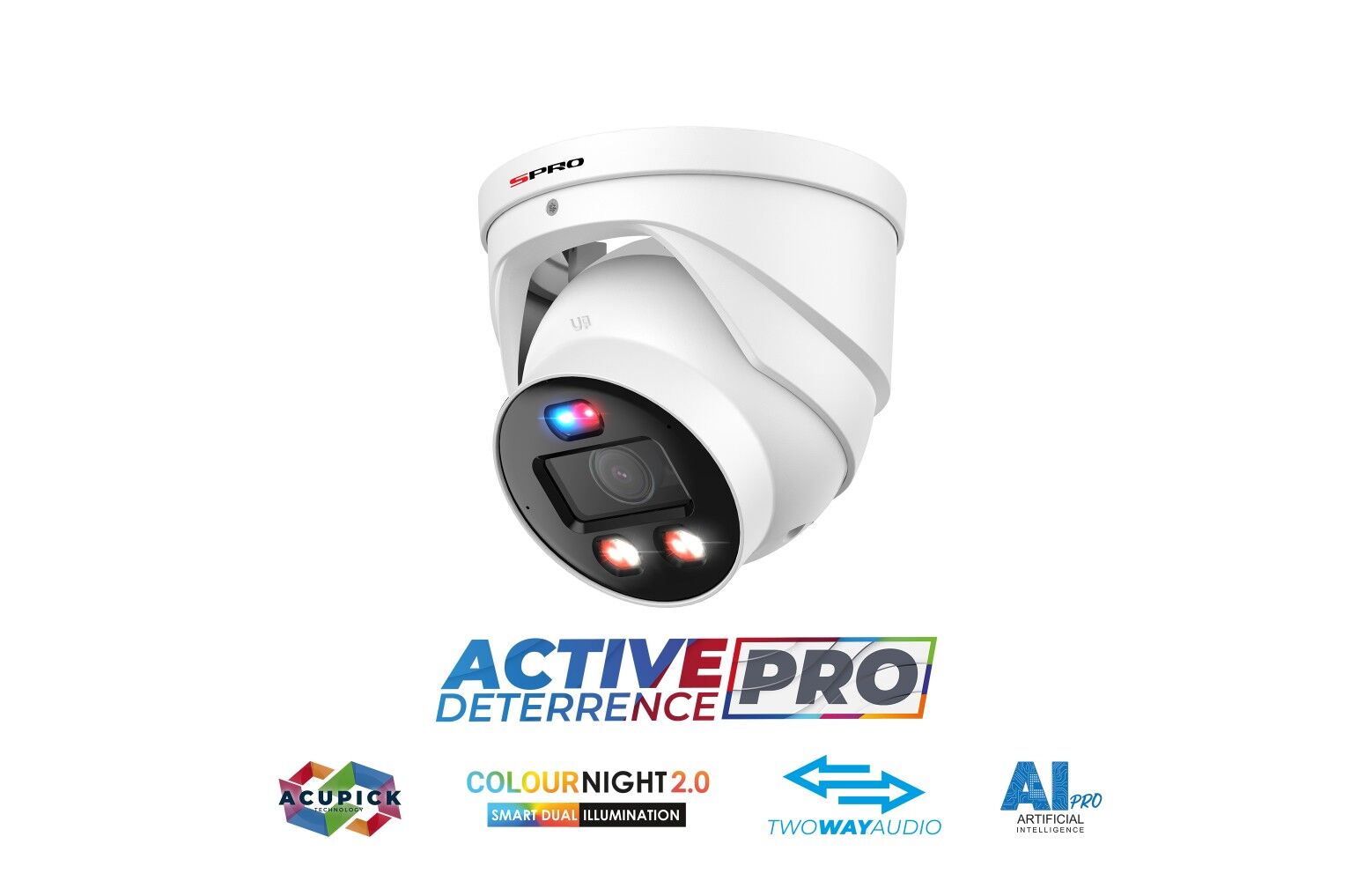

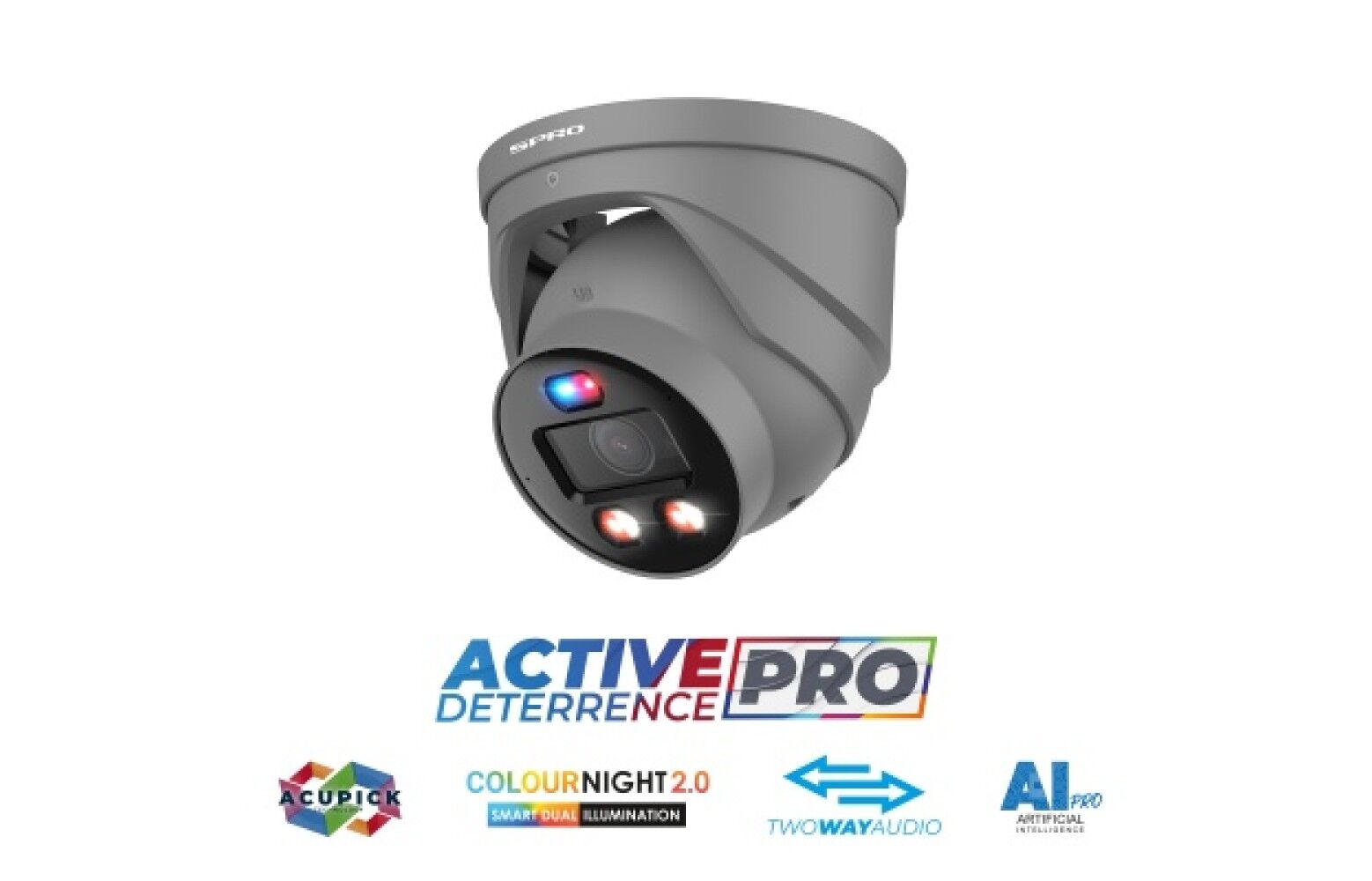

SPRO CCTV DHIPD80/28LRG/30-D-V5 – 8MP IP Turret Camera | Actieve Afschrikking & Slimme Detectie

Op zoek naar een geavanceerde beveiligingscamera met haarscherpe beeldkwaliteit en slimme technologieën? De SPRO DHIPD80/28LRG/30-D-V5 is dé 8MP IP Turret Camera die uw eigendommen optimaal beschermt.

✅ Actieve Afschrikking – Waarschuw indringers met een ingebouwde sirene en rood/blauw knipperende LED-verlichting.
✅ Smart Dual Illumination – Schakelt automatisch tussen infrarood en wit licht voor de beste zichtbaarheid, dag en nacht.
✅ Acupick Technologie – Geavanceerde AI-filtering voor nauwkeurige persoons- en voertuigherkenning, zonder valse meldingen.
✅ Weerbestendig (IP67) – Geschikt voor zowel binnen- als buitengebruik, bestand tegen alle weersomstandigheden.

Type Camera	Turret Camera's
Kleur	Wit, Zwart

Specifications:

Model Number	DHIPD80/28LRG/30-D-V5
Image Sensor	1/1.8" CMOS
Effective Pixels	3840 (H) × 2160 (V)
ROM	256 MB
RAM	2 G
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.0008 Lux@F1.0 (Colour, 30IRE) 0.0004 Lux@F1.0 (B/W, 30IRE) 0 lux (Illuminator on)
S/N Ratio	＞56 dB
Illumination Distance	30 m (98.43 ft) (IR) 30 m (98.43 ft) (warm light)
Illuminator On/Off Control	Auto / Manual
Illuminator Number	2 (Multi-core (IR + warm) light)
Pan/ Tilt/ Rotation Range	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lens
Lens Type	Fixed focal
Mount Type	M16
Focal Length	2.8mm
Field of View	H: 109°; V: 59°; D: 131°
Iris Type	Fixed
Max Aperture	F1.0
Close Focus Distance	2.1 m (6.89 ft)
DORI Distance	Detect: 82.0 m(269.03 ft) Observe: 32.8 m (107.64 ft) Recognise: 16.4 m (53.81 ft) Identify: 8.2 m (26.90 ft)
Intelligence
IVS (Perimeter Protection)	Intrusion, tripwire (the two functions support the classification and accurate detection of Humans and Vehicles)
SMD 4.0	Less false alarm, longer detection distance.
Intelligent Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
AcuPick	Uses deep learning algorithms and works with back-end devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets.
AI SSA	Adopt deep learning algorithms to adjust the parameters of the image to suit the conditions.
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos
Video
Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
AI Coding	AI H.265 (Compression rate ≥25%) AI H.264 (Compression rate ≥25%)
Video Frame Rate	Main stream: 3840 × 2160@(1 fps–25/30 fps) Sub stream: 1920 × 1080@(1–25/30 fps) Third stream: 1920 × 1080@(1–25/30 fps) *The values above are the max. frame rates of each stream; for multiple streams, the values will be subjected to the total encoding capacity.
Streaming Capability	3 Streams
Resolution	8M (3840 × 2160); 6M (3200 × 1800); 5M (3072 × 1728); 4M (2688 × 1520/2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)
Bit Rate Control	CBR / VBR / ABR
Video Bit Rate	H.264: 3 kbps–16384 kbps; H.265: 3 kbps–16384 kbps
Day/Night	Auto (ICR)/Colour/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation	Yes
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual / regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Smart Dual Light	Yes
Defog	Yes
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	8 areas
LDC	Yes
Audio
Built-in MIC	Yes, built-in dual Mic
Built-in Speaker	Yes, built-in dual Speaker
Audio Compression	PCM; G.711a; G.711Mu; G.726; G.723
Alarm
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; SMD; security exception
Network
Ethernet	RJ-45 (10/100Base-T)
SDK and API	Yes
Cyber Security	Video encryption;Firmware encryption;Configuration encryption; Digest;WSSE;Account lockout;Security logs;IP/MAC filtering; Generation and importing of X.509 certification;syslog; HTTPS;802.1x;Trusted boot;Trusted execution;Trusted upgrade
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP; P2P
Interoperability	ONVIF (Profile S; Profile G;Profile T); CGI
Max. User Access	20 (Total bandwidth: 64 M)
Storage	FTP;SFTP; Micro SD card (support max. 512 GB); NAS
Web Viewer	IE: IE11; Chrome ; Firefox
Management Software	Smart PSS Lite; DMSS
Smart Phone	iOS; Android
Certification
Certification	CE-LVD: EN 62368-1; CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
Port
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: wet contact, 5 mA 3–5 VDC
Alarm Output	1 channel out: wet contact, 300 mA 12 VDC
Power
Power Supply	12 VDC; PoE
Dual Power Backup	When the power adapter and PoE provide power at the same time, disconnect one of them. The device will continue to work, but will not restart.
Power Consumption	Basic: 4.1 W (12 VDC); 6 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.2 W (12 VDC); 10 W (PoE)
Environment
Operating Temperature	–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity	≤95%
Protection	IP67
Structure
Casing Material	Metal
Product Dimensions	Φ122.0 mm × 116.1 mm (4.80" × Φ4.57")
Net weight	0.8 kg (1.76 lb)
Gross Weight	1.0 kg (2.20 lb)
